Design Evo | Italian Porcelain Tile
With Design Evo, Elios presents the next step in the evolution of design. It is a concrete look with the character of the traditional Italian “cementine”. The decorative designs are sold individually, allowing people to select a specific pattern and use it in entire areas as a carpet or as an individual accent. Four field colors can be used on their own or combined with the decos, giving free reign to creativity.
Deco
Palazzo Ducale A
Palazzo Ducale B
Palazzo Ducale C
Palazzo Ducale E

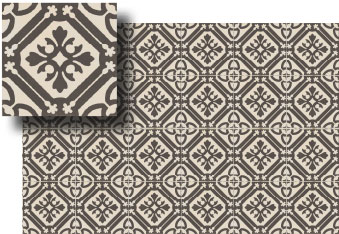

Black & White B

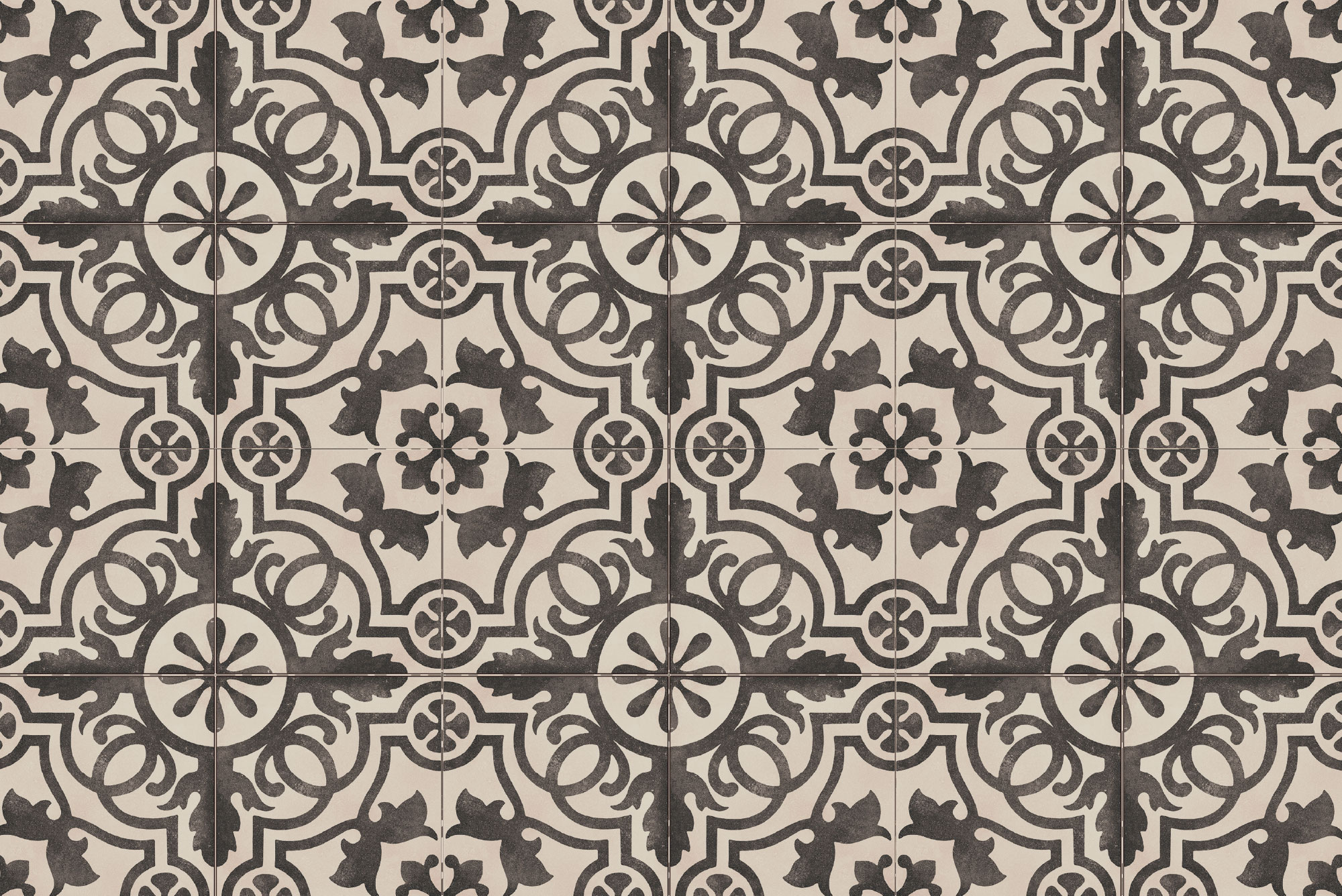

Black & White X

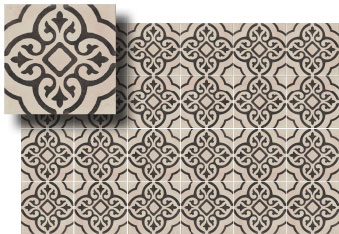

Black & White Z
Field
Burro
Ciano
Grigio
Terra di Siena
Colors, Sizes & Trim
| Size - Non-Rectified | ||
|---|---|---|
| ESDE--/88 | 8 x 8 | |
| Palazzo Ducale | ||
| ESDEPD/88A | ||
| ESDEPD/88B | Palazzo Ducale B | |
| ESDEPD/88C | Palazzo Ducale C | |
| ESDEPD/88E | Palazzo Ducale E | |
| Black & White | ||
| ESDEBW/88B | Black & White B | |
| ESDEBW/88X | Black & White X | |
| ESDEBW/88Z | Black & White Z | |
| Field Colors | ||
| ESDEBO | Burro | |
| ESDECO | Ciano | |
| ESDEGO | Grigio | |
| ESDETS | Terra di Siena | |
| Coordinating Trim | ||
| Old Trim | ||
| ESDE--/SBN | 3 x 24 Surface Bullnose | |
| New Trim | ||
| ESDE--/SBN38 | 3 x 24 Surface Bullnose | |
Please Note
It’s never advisable to select tile from images alone, especially when viewed on a screen since they can look different on different kinds of screens. Pictures are provided to give an idea of the look and variation. Colors are intended as a guide only and may vary from actual tile. Sizes listed are nominal. Please check samples before making final selection and to get actual dimensions for layout.
Coordinating Trim
Expect shade variation between field and bullnose.
The factory is switching to 3 x 8 Surface Bullnose from the current 3 x 24 Surface Bullnose. This change will occur color by color over a period of time. If there is a concern about a particular order (i.e. a job continuation) please contact us to find out which version we currently have.
Old Trim: ESDE--/SBN 3 x 24 Surface Bullnose
New Trim: ESDE--/SBN38 3 x 8 Surface Bullnose
Black & White Decos
The Black and White section of Design Evo is a selection of decorative designs in the classic black and white color combination. As an aged cementine look, the pattern is in dark grey on the soft cream background of the Burro color.
Usage & Installation
Suitable for walls and floors including residential and moderate commercial use. Please note that some patterns are complete within a single piece of tile while others need four tiles to complete each pattern. For the designs that require four pieces, Palazzo Ducale A and C, single piece Pattern E and Black & White X, care should be taken during installation to make sure the tiles are correctly placed to achieve the desired final look. The minimum recommended grout joint is 3/32”. Please note that the material is non-rectified. If using more than one item together (i.e. field and decos), please check the caliber and be aware that you may have to adjust the size of the grout joint to make your pattern work.
Palazzo Ducale E
As noted in the American with Disabilities Act (ADA) the coefficient of friction varies considerably due to facts not under the control of entities such as the manufacturers and distributors. These factors include, but are not limited to, contaminants, slope of terrain, drainage conditions, adjacent surfaces, etc. Suitability for any installation can only be determined by a site examination of all conditions that could affect the slip resistance of the tile being installed. Continual cleaning and maintenance must be performed once the tile has been installed.
