Framed Hex Mosaic

 framed hex mosaic

Ivory/White Natural



 framed hex mosaic

Dark/Grey Natural


Colors, Sizes & Trim

Colors
MCSDBE
Blue
MCSDDK Dark
MCSDGY
Grey
MCSDIY Ivory
MCSDWE White
Sizes - Non-Rectified
MCSD--N/1224 12 x 24 Natural
MCSD--E/1224 12 X 24 Embossed
*MCSD--N/2448 24 X 48 Natural
Trim
MCSD--N/SBN 3 x 24 Surface Bullnose
Mosaic
MCSD--N/22 2 x 2 Mosaic
Framed Hex Mosaic
MCSDB1N/FHX Blend 1 Ivory/White Natural
MCSDB2N/FHX Blend 2 Dark/Grey Natural

Additional Information

Sizes

*24x48 Natural Finish stocked in Dark (DK), Grey (GY) & White (WE) colors.

Trim

Available in Natural Finish only. The surface bullnose is made from field tile that is cut, ground and reglazed.

Mosaic and Framed Hex Mosaic

2 x 2 is only available in natural finish.

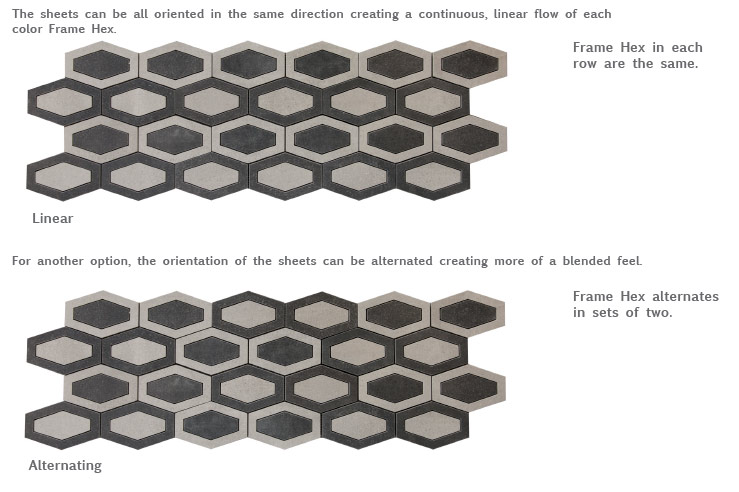

IMPORTANT NOTE : THE FRAME HEX MOSAIC SHEET IS DIRECTIONAL AND CARE MUST BE TAKEN WHEN INSTALLING!!! Different looks can be achieved depending on how the sheets are lined up with each other. The sheets can be set with the colors aligned to create a continuous, linear flow. Or the orientation of the sheet can be varied, according to a consistent plan, to create a more intricate pattern.

finish

Usage & Installation

Stonecloud is suitable for residential and commercial applications.

Most Italian manufacturers recommend a maximum offset of 8” (20cm) on all large format tiles when setting a running bond. Please refer to ANSI requirements for setting large format tiles, ANSI A 108.2 Section 4.3.8. Using a leveling system can improve the installation of this product.

To attain the proper mix of graphics and color it is important to pull from multiple boxes during installation, rotate pieces, and note the placement of the different images to get the proper final blend. Stonecloud is suitable for residential and commercial applications.

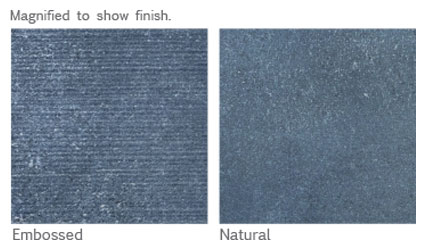

Finish

finish

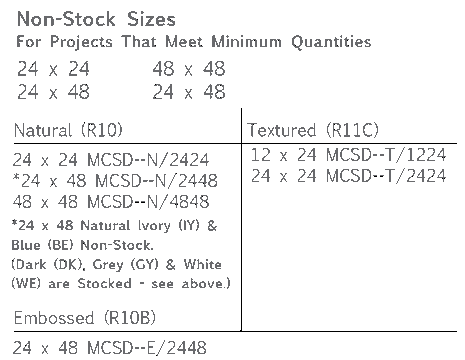

Non-Stock

nonstock italy

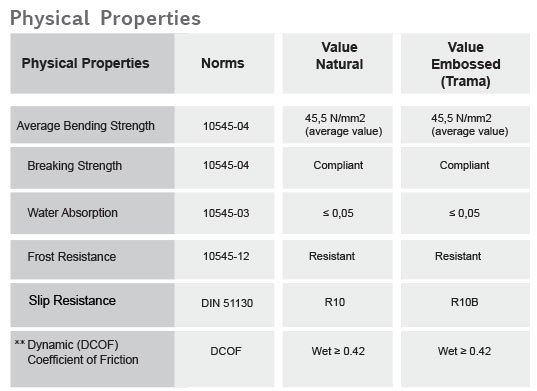

testing
The Coefficient of Friction is a general guide only. Testing may vary with different production runs and with different testing labs.

As noted in the American with Disabilities Act (ADA) the coefficient of friction varies considerably due to facts not under the control of entities such as the manufacturers and distributors. These factors include, but are not limited to, contaminants, slope of terrain, drainage conditions, adjacent surfaces, etc. Suitability for any installation can only be determined by a site examination of all conditions that could affect the slip resistance of the tile being installed. Continual cleaning and maintenance must be performed once the tile has been installed.
